Special Space Frame Structures: Innovative & Unique Designs

Space frames are highly adaptable, leading to specialized designs for unique architectural, engineering, and functional requirements. These special space frames push the boundaries of conventional structures with complex geometries, adaptive mechanisms, or hybrid systems.

1. Kinetic (Movable) Space Frames

Description: Structures with moving parts that adjust shape for functionality (e.g., retractable roofs, foldable facades).
Key Features:

• Motorized or manual deployment.

• Lightweight materials (aluminum, carbon fiber).

• Used in stadiums, airports, and exhibition halls.

Examples:

• Singapore National Stadium – Retractable dome with a sliding space frame roof.

• Kiev Olympic Stadium (Ukraine) – Adjustable space frame roof sections.

2. Free-Form (Organic) Space Frames

Description: Non-geometric, curved, or sculptural space frames used in avant-garde architecture.
Key Features:

• Parametric design (using Rhino + Grasshopper).

• Custom-fabricated nodes and members.

• Requires advanced BIM & finite element analysis (FEA).

Examples:

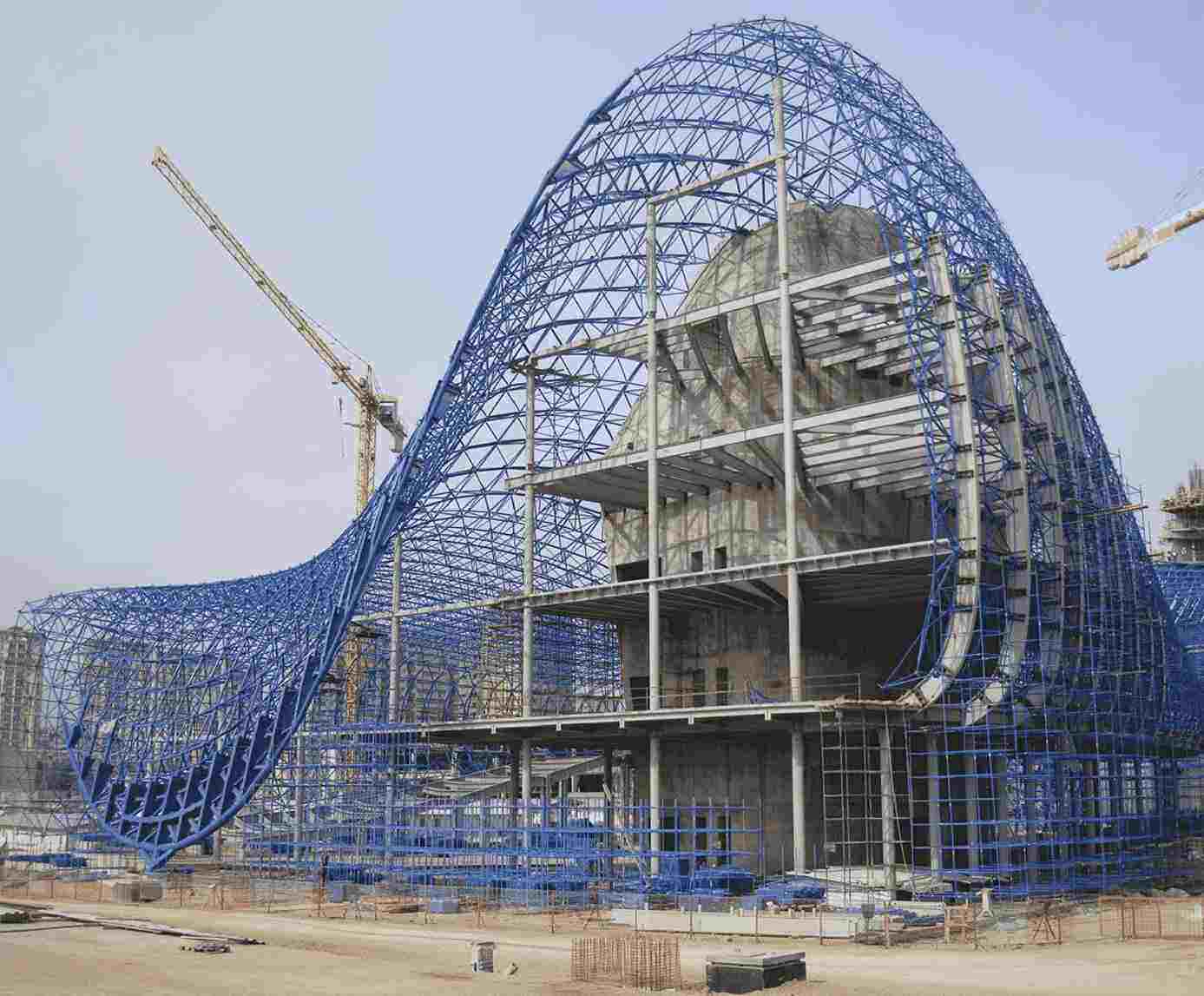

• Heydar Aliyev Center (Azerbaijan) – Zaha Hadid’s fluid-design space frame shell.

• Beijing Daxing Airport (China) – Organic steel grid roof.

3. Tensegrity Space Frames

Description: Hybrid of tension cables + compression struts, creating floating-like structures.
Key Features:

• No continuous compression members – Pure tension/compression separation.

• Ultra-lightweight & visually striking.

• Used in bridges, sculptures, and aerospace.

Examples:

• Kurilpa Bridge (Australia) – World’s largest tensegrity bridge.

• NASA’s Mars Habitat Concepts – Deployable tensegrity modules.

4. Hybrid Space Frames (Combined Systems)

Description: Integrates space frames with other structural systems (e.g., membranes, concrete, arches).
Key Features:

• Optimizes material efficiency.

• Enhances load distribution.

Examples:

• Allianz Arena (Germany) – ETFE membrane on a space frame.

• Louvre Abu Dhabi – Space frame + perforated dome cladding.

5. Deployable (Temporary) Space Frames

Description: Collapsible & transportable structures for emergency, military, or event use.
Key Features:

• Rapid assembly/disassembly.

• Lightweight (aluminum/scissor mechanisms).

Examples:

• NASA’s Solar Array Wings – Foldable space frames for satellites.

• Mobile Military Hangars – Quick-deploy aircraft shelters.

6. Bio-Inspired Space Frames

Description: Mimics natural structures (honeycombs, spider webs, bone formations).
Key Features:

• Algorithmic optimization for strength.

• Sustainable & material-efficient.

Examples:

• Eden Project (UK) – Hexagonal biome domes inspired by soap bubbles.

• Beijing 2022 Winter Olympics Pavilions – Snowflake-patterned grids.

7. Ultra-Lightweight Space Frames

Description: Uses advanced composites (carbon fiber, 3D-printed alloys) for minimal weight.
Key Features:

• Used in aerospace, F1 cars, and drones.

• High cost but extreme performance.

Examples:

• Airbus A350 Wingbox – Carbon-fiber space frame design.

• BMW i8 – Carbon-fiber-reinforced space frame chassis.

Comparison of Special Space Frames

Conclusion

Special space frames represent the future of structural engineering, blending innovation, efficiency, and aesthetics. From retractable stadium roofs to Mars habitat concepts, these systems push the limits of what’s possible in architecture and engineering.
