Vertical Grain Storage (Vertical Silos)

Main Types of Vertical Grain Silos

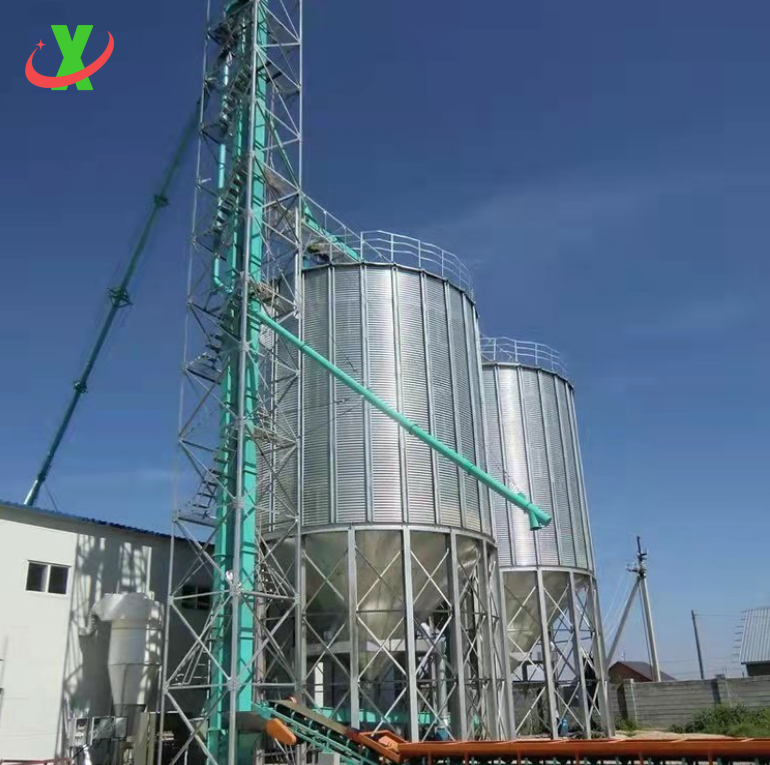

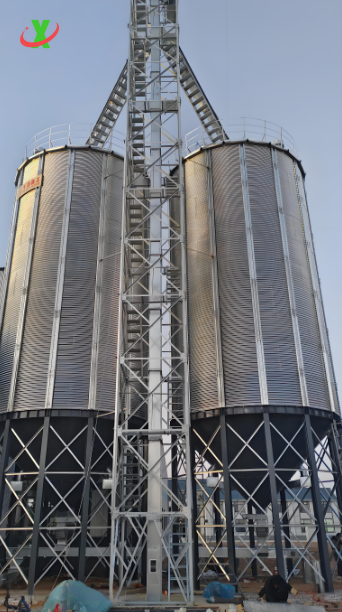

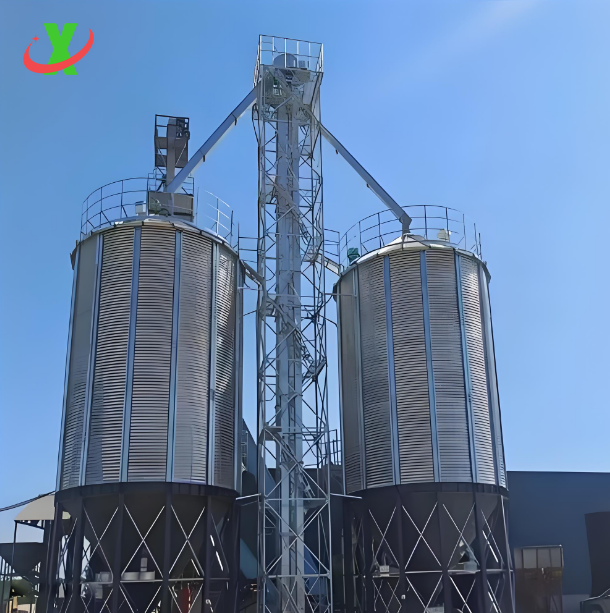

1. Hopper Bottom Silo (Cone Bottom)
   • Sloped conical base, elevated on legs.
   • Gravity discharge — fast, full cleanout, no residue.
   • Best for: frequent handling, seed, feed, small-to-medium capacity.

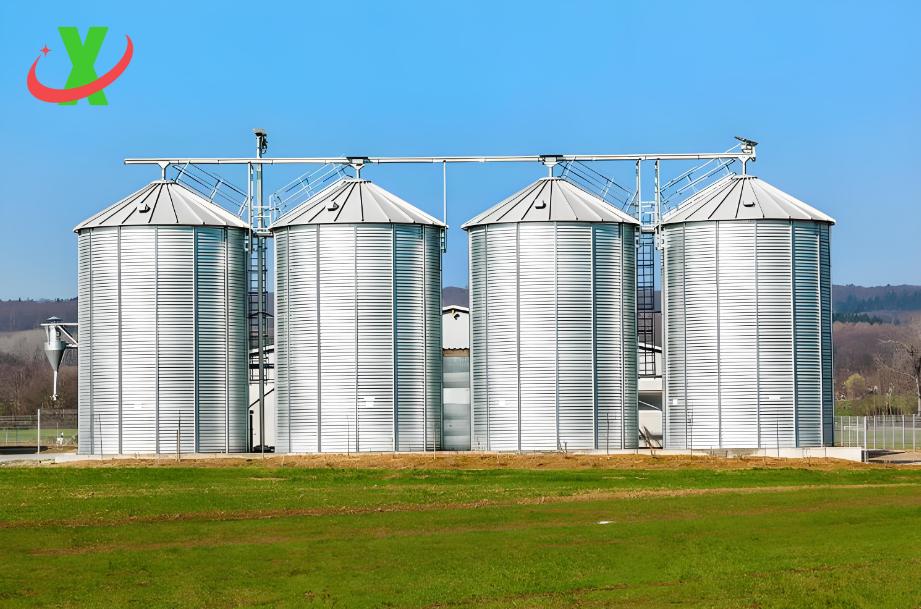

2. Flat Bottom Silo
   • Flat floor, sits directly on a concrete foundation.
   • Needs sweeper auger or unload conveyor to empty.
   • Best for: large-capacity, long-term grain storage.
3. Smooth Wall / Corrugated Wall Silo
   • Corrugated galvanized steel is most common (strong, low-cost, durable).
   • Smooth wall used for special applications (food grade, easy cleaning).

Key Components

• Body: Cylindrical vertical steel sheets.
• Roof: Inverted cone roof with vent, manhole, loading inlet.
• Foundation: Concrete ring beam or full slab.
• Discharge system: Slide gate, auger, conveyor.
• Optional: Aeration fan, temperature monitoring system, level sensor, dust filter.

Advantages of Vertical Grain Storage

• Small land footprint — high storage in small area.
• Good ventilation & aeration to preserve grain quality.
• Easy loading & unloading (vertical flow).
• Low spoilage if properly managed.
• Durable (galvanized steel lasts decades).
• Modular design — expandable.

Typical Applications

• Farm grain storage (wheat, corn, soybeans, barley, rice)
• Feed mills
• Seed processing plants

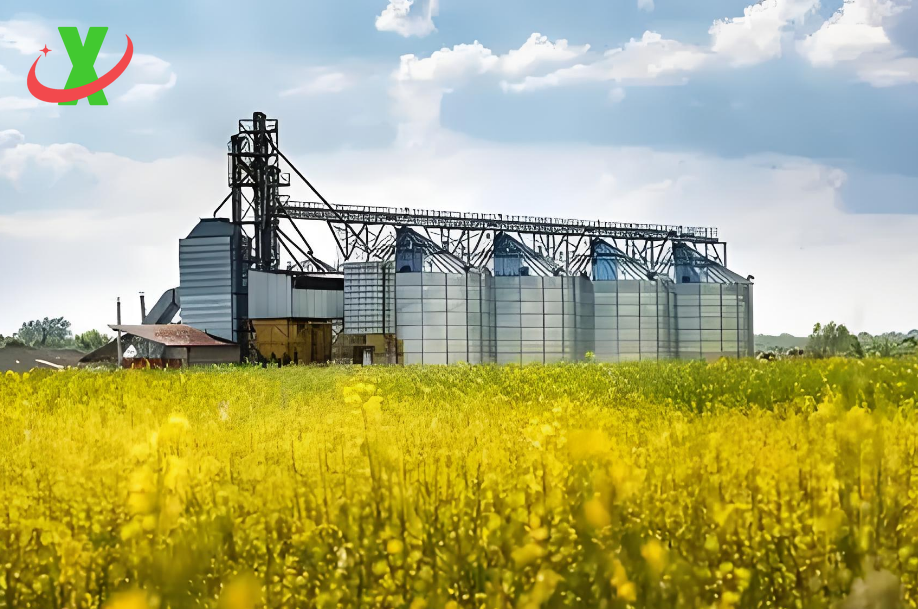

• Grain depots & terminals
• Biofuel & food processing facilities

Vertical vs Horizontal Storage

• Vertical: Higher capacity per m², better ventilation, easier automation.
• Horizontal: Lower cost, easier to move, but lower density and harder to manage quality.
