Mezzanine Floor in a Steel Building: Design, Applications & Benefits

A mezzanine floor is an intermediate level installed between the main floors of a steel structure, effectively doubling usable space without expanding the building's footprint. It is widely used in warehouses, factories, retail spaces, and offices to optimize vertical space.

1. Types of Mezzanine Floors in Steel Buildings

Mezzanines can be customized based on load requirements and usage:

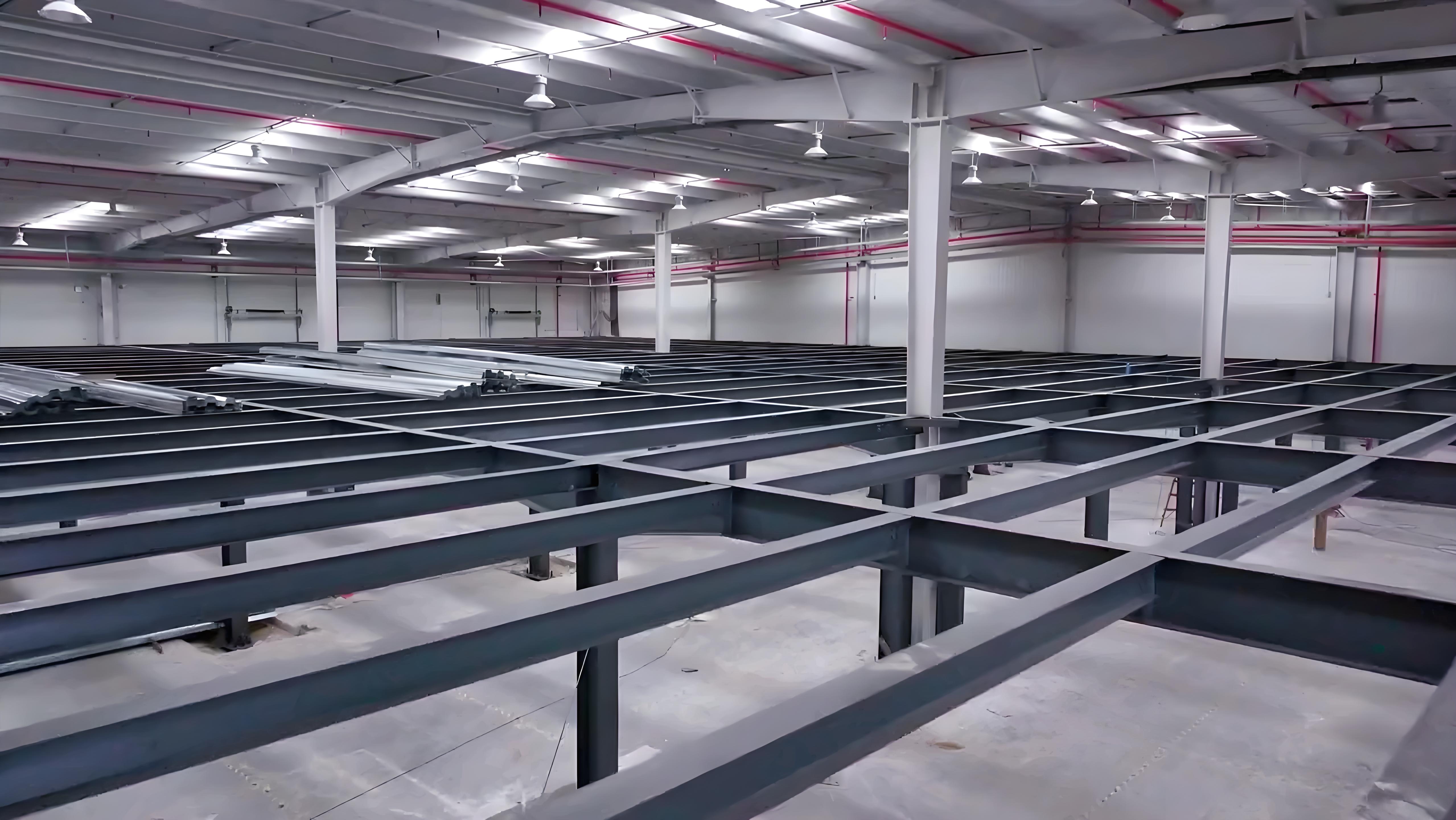

A. Structural Steel Mezzanines

• Made from hot-rolled steel beams, columns, and decking.

• Used for heavy-duty applications (e.g., industrial storage, machinery platforms).

• Load capacity: Up to 1,000+ kg/m².

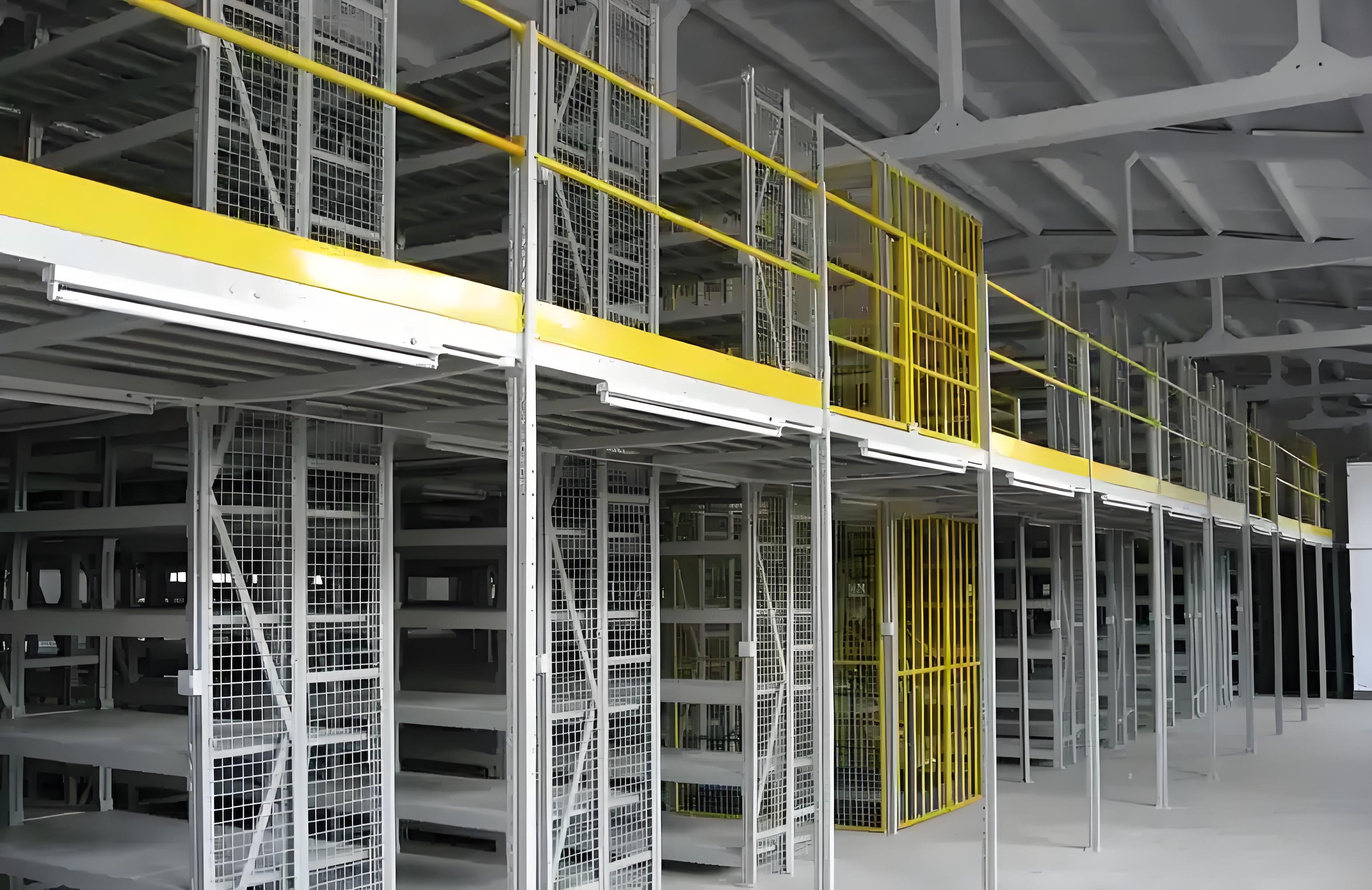

B. Light-Duty (Shelving-Supported) Mezzanines

• Built on pallet racking or shelving systems.

• Ideal for additional storage or picking areas in warehouses.

• Load capacity: 300–500 kg/m².

C. Free-Standing (Modular) Mezzanines

• Prefabricated and easily relocatable.

• Common in retail, offices, and showrooms.

• Load capacity: 250–750 kg/m².

D. Cantilever Mezzanines

• Supported by wall brackets instead of columns.

• Used where floor space must remain unobstructed.

2. Key Applications in Steel Buildings

✔ Warehousing & Logistics – Extra storage, order-picking platforms.
✔ Manufacturing – Work platforms, assembly lines, machinery access.
✔ Retail & Commercial – Office space, showrooms, inventory display.
✔ Cold Storage – Multi-level storage for perishable goods.
✔ E-commerce Fulfillment Centers – Sorting and packing stations.

3. Advantages of Mezzanine Floors in Steel Structures

✅ Space Optimization – Adds usable floor area without expanding the building.
✅ Cost-Effective – Cheaper than constructing a new floor.
✅ Quick Installation – Prefabricated steel mezzanines can be installed in days/weeks.
✅ Customizable – Adjustable height, size, and load capacity.
✅ Modular & Relocatable – Can be dismantled and reused elsewhere.
✅ Compatible with Automation – Supports conveyor systems, robotic picking, and lifts.

4. Design Considerations

A. Load Capacity

• Light-duty: 250–500 kg/m² (offices, retail).

• Medium-duty: 500–1,000 kg/m² (warehouse storage).

• Heavy-duty: 1,000+ kg/m² (industrial machinery).

B. Decking Options

• Steel grating (ventilation, durability).

• Plywood/OSB (lightweight, cost-effective).

• Concrete-filled metal deck (high strength, fire resistance).

• Perforated metal (slip resistance, drainage).

C. Safety & Compliance

• Guardrails & handrails (OSHA/ISO standards).

• Staircases or ladders (mandatory for access).

• Fire protection (if required by building codes).

D. Integration with Building Systems

• Lighting & electrical wiring for workspaces.

• HVAC considerations (for temperature-controlled environments).

5. Installation Process

1. Site Assessment – Check floor strength, ceiling height, and column positions.

2. Design & Engineering – Ensure compliance with local building codes.

3. Fabrication – Prefabricated steel components for fast assembly.

4. Assembly – Erect columns, beams, decking, and safety features.

5. Finishing – Add stairs, lighting, and other utilities.

Conclusion

A mezzanine floor in a steel building is a versatile, cost-efficient solution for maximizing vertical space in warehouses, factories, and commercial buildings. Its modularity, strength, and quick installation make it ideal for businesses needing extra storage, workspace, or automation support.
