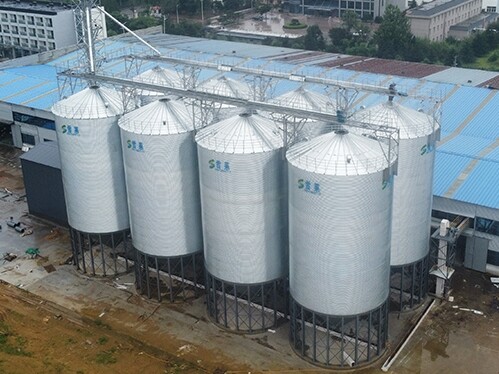

Steel grain bins, also known as steel silos, are a core component of modern grain storage facilities, primarily used for the safe and efficient storage of bulk grains such as wheat, corn, and soybeans. Compared to traditional concrete silos, they offer significant advantages including lower cost, faster construction, and lighter weight.

Based on the bottom structure and discharge method, steel silos are mainly divided into two types:

• Flat-Bottom Silos: These have a flat floor and are ideal for large-capacity, long-term storage. Unloading typically requires mechanical equipment such as sweep augers, making them common on large farms and commercial grain terminals.

• Hopper-Bottom Silos: These feature a cone-shaped bottom that allows grain to discharge by gravity. This design ensures complete clean-out with no residue, making them particularly suitable for applications with frequent product changes, such as in feed mills and seed processing plants.

From a construction perspective, the main forms include:

• Corrugated Bolted Tanks: Constructed from galvanized corrugated steel sheets connected with high-strength bolts. They are highly standardized and can be disassembled and relocated.

• Spiral-Welded Silos: Formed by a machine that continuously spirals a steel strip into a silo body. This creates a distinctive external spiral rib, resulting in excellent overall strength and sealing, especially for powdery materials.

• Large-Scale Welded Silos: Fabricated and welded on-site, with a single unit's capacity capable of reaching tens of thousands of tons.

The steel used is typically hot-dip galvanized sheet (such as S350GD material with a Z450-Z600g/m² zinc coating), providing excellent corrosion resistance and eliminating the need for regular painting maintenance. Modern silos are also equipped with comprehensive monitoring and aeration systems:

• Temperature Monitoring System: Continuously monitors grain temperature inside the silo to prevent spoilage.

• Aeration System: Uses fans and ductwork to force air through the grain, reducing moisture and temperature.

• Level Sensing and Safety Systems: Equipped with level indicators, ladders with safety cages, and explosion-proof features to ensure operational safety.

In summary, steel grain bins have become critical infrastructure for minimizing post-harvest losses and preserving grain quality, thanks to their superior cost-effectiveness, scalability, and automated management capabilities.
